New Product Announce!

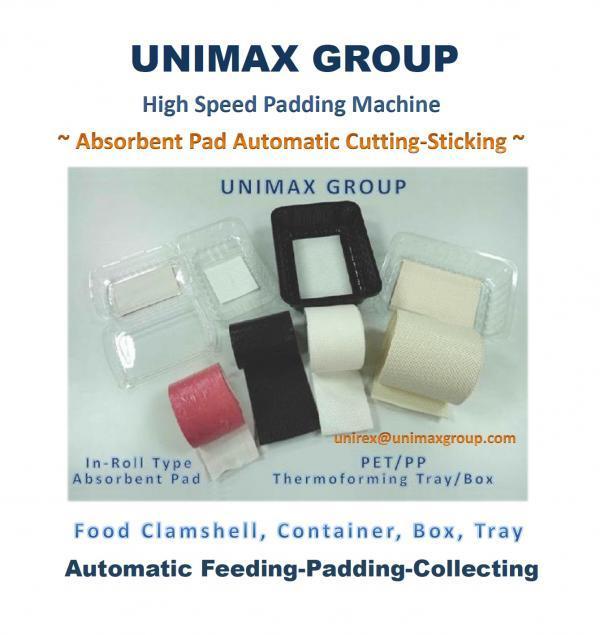

Absorbent Pad High Speed Padding Machine

Absorbent Pad High Speed Padding Machine

High Speed Padding Machine

Product ID: Thermoforming Product Padding Series 311-VP (146)

■ Application & Product Example:
- General Food Products of Clamshell/Box/Carton/Tray
- Meat Tray/Box/Container/Carton
- Fruit Tray/Box/Container/Carton
- Sea Food Tray/Box/Container/Carton
- Agriculture Products Tray/Box/Container/Carton

♦ In-Roll Type of Absorbent Pad
♦ Automatic Servo Motor Control Pad Feeding System
♦ Automatic Servo Motor Control Pad Cutting System
♦ For Plastic Vacuum Formed / Thermoforming Box/Container/Tray
♦ Automatic Peel-Off & Continuous Feeding.
♦ No Need to Stop the Machine For Supplementary Filling.
♦ Batched Quantity Automatic & Collecting System.


• Operation Speed: Approx. 2 ~ 2.2 Pieces/Sec.
• Pad Size: Max. 140 (L) * 100 (W) mm.
• Pad Roll: ø 600 (O.D.) * 76 (I.D.) mm.
• Machine Size: Approx. 8,000 (L) * 1,000 (W) * 2000 (H) mm.

♦ Equipped with 4-Arm Robot Box Taking System.
​♦ Equipped with 3-Jaw Cutting System.
♦ Equipped with "NORDSON" Hot-Melt Glue Applicator.​
♦ Equipped with High Speed Sticking-Padding System.


■ Features:
• Japan "MITSUBISH" PLC Control System.
• Japan "YASKAWA" Servo Motor Control System.
• Interfaced 10" Colorful HMI Touch Screen Monitor.
• Padding Sensor: Japan "KEYENCE" Optoelectronic Fiber Sensor.
• Product Detect Sensor: "OMRON" Optoelectronic Sensor.

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
