New Product Announce!


Thermoforming Product Automatic Labeling Machine

Product ID: Plastic Thermoforming Product Labeling 311/321-VA Series (141)

• Off-Line
 Labeling Application

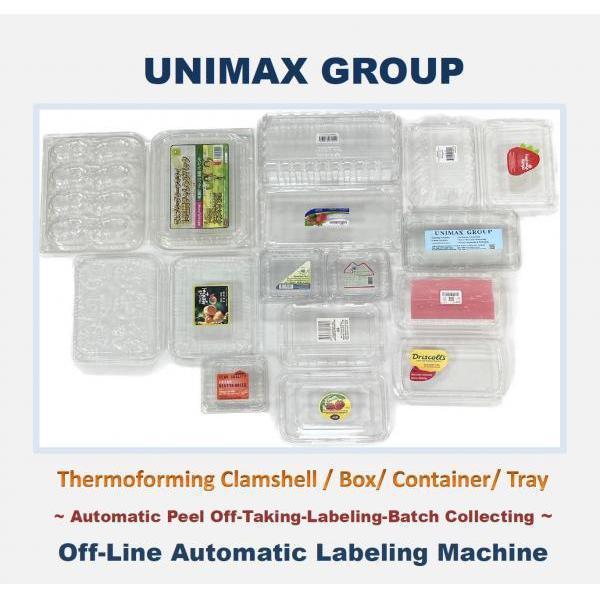

For Plastic Thermoforming /Vacuum Formed Product:
   PET Clamshell / Container / Box / Tray / Lid
 Automatic Peel-off Taking System
 Automatic Stacking Batch Collecting System
 Single Line Product Transportation System

• 311-VA-S2 Automatic Single-Labeling System
• 321-VA-S3 Automatic Twin-Labeling System

* High Precision Servo Motor Control Labeling System.


• Product Size (Opened):
- Max. 330 (L) x 350/450 (W) mm (Formed & Trimmed)
• Labeling Accuracy: ± 2 mm
• Collector: 300 mm in Height
• Conveyor Feeding Speed: Approx. 30 m/min
• Operation Speed: Approx. 6~18 m/min
• Reference Capacity:
- Approx. 30~40 pcs/min Depend on Substances and Specification
• Product Size (Opened):
- Max. 330 (L) x 350/450 (W) mm (Formed & Trimmed)

• Transparent Label Sensor System
• Non Air Bubble Labeling Mechanism
- For More Rigid Substances and Transparent Label

  Control System:
• Japan "Mitsubishi" PLC Control Sytem
• Inter-faced Colorful Touch Screen Monitor
• Conveyor with Japan Orient AC Motor Driving System
• With Italy Warm Gear Speed Reducer
• With Japan "YASKAWA" Servo Motor Labeling System
• Label Detecting Sensor: "Sick" Brand


• For Products Top Labeling by Self-Adhesive Label
• Computerized Labeling Mechanism
• No Scratch on Label & substances
• Servo Motor Control Pressure Sensitive Labeling System
• Nontransparent Type of Label
- Easy to Change Labeling and Conveyor Speed
• Easy to Adjust and Control Conveyor with Labeling Synchronously
• Labeling and Counting Synchronously
• Easy to Re-Load Label Roll while Running Out the Labels
• Short Time Needed only for Replacing Label Roll
• Automatic Clamshell /Box /Tray Take-Off with Stacking Collector
- Servo Montro Contol system Receiver
• Adjustable Control for Labeling System
- Labeling Position/ Height / Angle

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
