Thermoforming Production In-Line Labeling Machine

Product ID: Thermoforming Production In-Line Labeling VC Series (145)

• For Plastic/PET Vacuum/ Thermoforming Production Line
- Clamshell / Box / Tray Labeling before Cutting & Trimming

• Integrated Control with Plastic Thermoforming Production Line
• PET/Plastic Vacuum / Thermoforming Sheet Feeding Continuously
• Automatic Multi-Head Labeling System

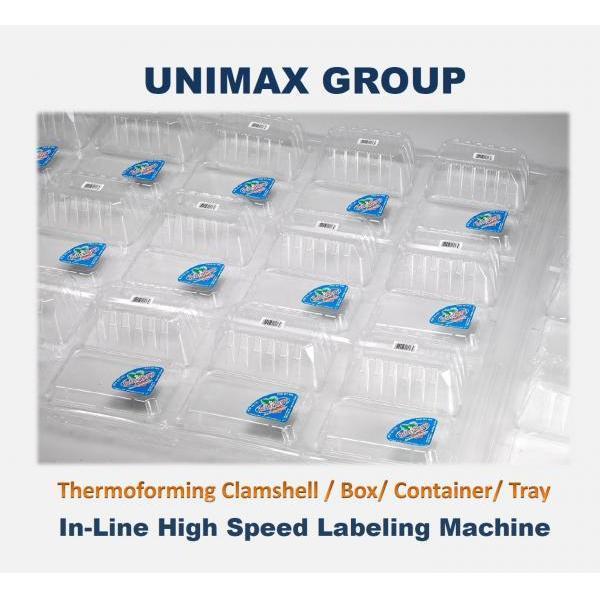

♦ Product Example:
- In-Roll Type Plastic Vacuum / Thermoformed Sheet
♦ Labeling Type:
- Pressure Sensitive Self-Adhesive Labeling system
■ Model:
• 260-VC-S7: 6-Head Bottom Labeling System
• 240-VC-S5: 6-Head Bottom Labeling System
• 360-VC-S7: 6-Head Top Labeling System
• 340-VC-S5: 4-Head Top Labeling System

* High Precision Servo Motor Control Labeling System


Labeling Accuracy: ± 2 mm
 Labeling Speed: Single Label Max. 30 pcs/min/line/single label
Reference Operation Speed:
- Approx. 6~10 forming cycle/min, Depend on forming Line
♦ Product Specification Example:
• Sheet Width: Max. 1200 (L) x 1000 (W) mm
• Number of Cavity 260 / 360-VC-S7:
(A) Max. 5 Cavities (L) x 3 Cavities (W): When Lid and Box / Tray Labeling at the Same Row
(B) Max. 5 Cavities (L) x 6 cavities (W): When Lid and Box / Tray Single Labeling and not Labeling at the Same Row
• Number of Cavity 340-VC-S5:
(A) Max. 5 Cavities (L) x 2 Cavities (W): When Lid and Box Labeling at the Same Time
(B) Max. 5 Cavities (L) x 4 Cavities (W): When Lid and Box Single Labeling and not Labeling at the Same Time
• Product Label (#1):
260/360-VC-S7: Max. 200 (L) x 90 (W) mm;
340-VC-S5: Max. 150 (L) x 120 (W) mm
• Barcode Label (#2):
260/360-VC-S7: Max. 60 (L) x 60 (W) mm;
340-VC-S5: Max. 250 (L) x 90 (W) mm

 Optional: Transparent Label Sensor Detect System


■ Features:
• Computerized Labeling Mechanism
• No Scrash on Labels & Substances
• Independent Control for Labeling System:
   Labeling Frame / Position / Height / Angle
• Easy to Change Labeling and Conveyor Speed
• Easy to Adjust and Control Conveyor with Labeling Synchronously
• Labeling and Counting Synchronously

♦ Structure & Function:
- 260-VC-S7 with Built-In Frame Integrated 6-Labelign System
- 240-VC-S5 with Built-In Frame Integrated 4-Labelign System
- 360-VC-S7 with Built-In Frame Integrated 6-Labelign System
- 340-VC-S5 with Built-In Frame Integrated 4-Labeling System
- Servo Motor Driving System
- Nontransparent Type of Label
- Vacuum / Thermoformed Sheet Automatic Transporting System
- Labeling Speed:
  In Accordance the Signal from Thermoforming Machine
- Labeling and Speed Proceeding Mathematical Exercising      Synchronously by PLC

♦ Control System:
• PLC Control System: Japan "Mitsubishi" PLC
• HMI: Inter-faced Control Colorful Touch Screen Monitor
• Equipped with Japan "YASKAWA" Servo Motor Labeling System
• Label Detecting Sensor: "Sick" Brand

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
