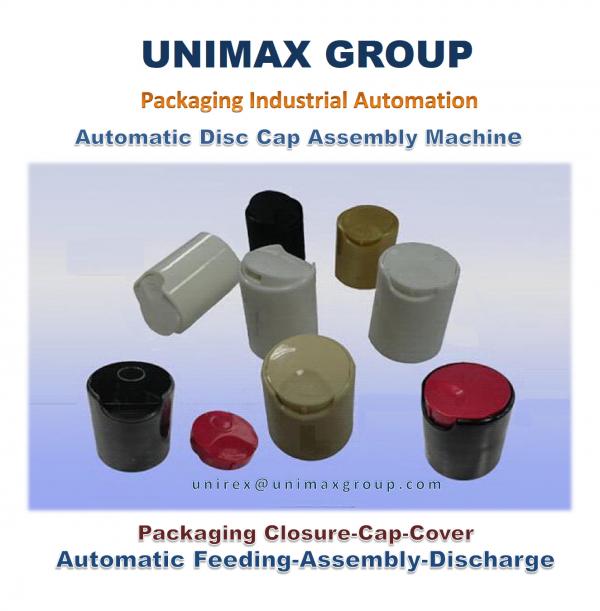

UAC-8232-DB-P Disc Cap Assembly Machine
Product ID: Assembly Machine UAC-8232-DB-P Series (117)
■ Application:
• Cap Disc & Body Assembly
■ Model:
• UAC-8232-DB-P
Designed Capacity: Approx. 30 – 65 pcs/min.
Operation Capacity: Approx. 50 – 60 Pcs/Min.
Specifications:
■ Main Specification:
1. Parts Arranging and Feeding (Cap-Disc) – 500 Ø * 1
a) Un-scrambler
b) Un-scrambler frame
c) Overflow control system
d) Components delivery mechanism (Horizontal delivery system)
2. Un-scrambler Storage Tank (Cap-Disc) * 1
- 500 * 500 mm
- With overflow control system
3. Parts Arranging and Feeding (Cap-Body) – 500 Ø * 2
a) Un-scrambler
b) Un-scrambler frame
c) Overflow control system
d) Components delivery mechanism (Horizontal delivery system)
4. Un-scrambler Storage Tank (Upper Cap) * 2
- 500 * 500 mm
- With overflow control system
5. Machine Main Structure (1-Mold, 3-Cavity, 8-Station) * 2
a) Main machine structure
b) Indexing Table Positioning System
- Ø 600mm * 850 H disc
- 8 stations
- Brake Clutch Motor
- Motor drive positioning
c) 8-station mold-sets for assembly molds
d) Aluminum Alloy Engraved mold x 8 sets (1-Mold, 3-Cavity)
6. Assembly System * 1
a) Automatic cap separating system (Disc/Body) * 2
b) Automatic cap suction take-up feeding system (Disc/Body) *2
c) Rotation position setting system (Disc) * 2
d) Automatic cap assembly system (Disc & Body) * 2
e) AC motor control 25 W “OGURA” torque control system * 2
f) Automatic products transfer delivery discharging device * 1
(1-Mold, 3-Cavity)
g) Sensor control system
h) Caps detect system
Features:
Order Information:
- Minimum Order: Negotiable
- Branded Product
