313M-SW High-Tech U-Shape 3-Side Labeling Machine

313M-SW High-Tech U-Shape 3-Side Labeling Machine

High-Tech U-Shape 3-Side Labeling Machine

Product ID: High-Tech U-Shape 3-Side Labeling 313M-SW Series (78)

• High Precision Labeling.

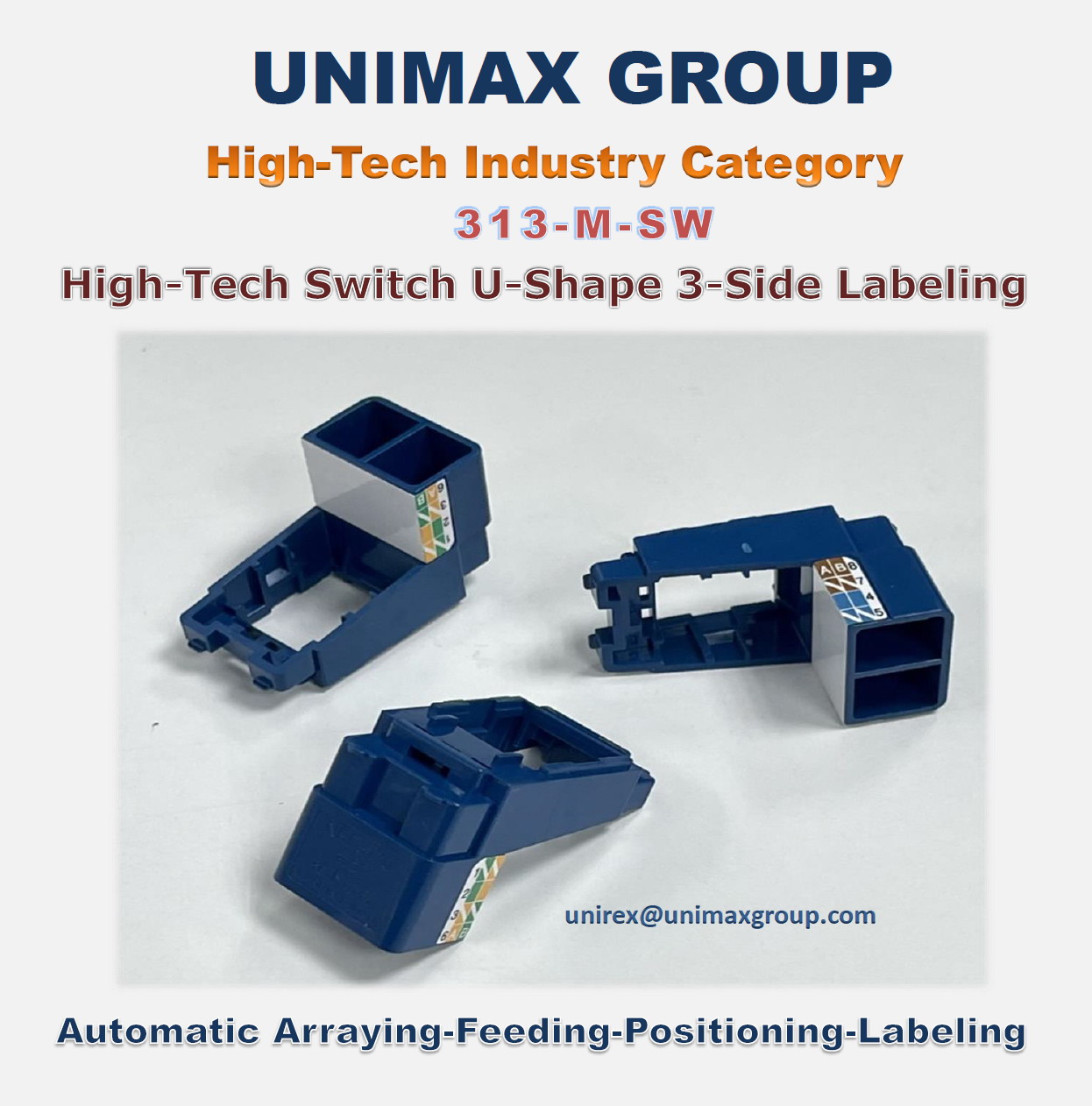

• Product Example:
   High-Tech Industry Product Component, Electrical Switched, etc.
• Suitable for High Precision Labeling.

U-Shape 3-Side Labeling.

* Machine Equipped with Dustless Protection Cabin & Door.


Machine Structure:
- Whole machine structure made by stainless steel parts and 6061 T6 aluminum alloy with anodizing treatment, rust free.
- Product Automatic Separating System.
- Vibrating Horizontal Feeding System.
- Product Auto-Transfer System.
- U-Shape 3-Side Labeling System
- Twin-Direction Output Delivery Conveyor.

  Machine Specification:
- Labeling Precision: ± 0.3 mm.
- On the basis of flat surface.
- Excluded tolerance of substance or mold).
- Machine Speed: Approx. 36 M/Min.
- Operation Capacity: Approx. 15~20 PCS/Min.
- Label Size: Max. 33 (L) x 15 (W) MM (included base paper)


Control System:
• Servo Motor Control Precision Labeling System.
• Operation Control System:
   Inter-Faced HMI Colorful Touch Screen Monitor “PROFACE”.
• Programmable Logic Control System: "MITSHBISHI" PLC.

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
