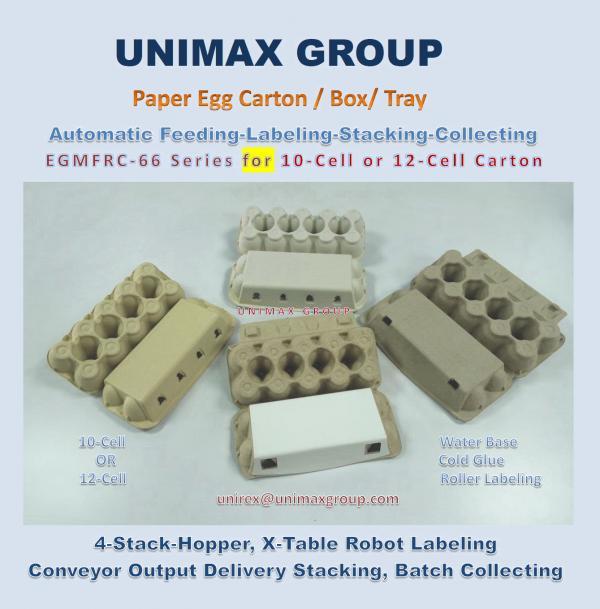

EGMFRC-66 Paper Egg Carton Automatic Feeding-Robot Labeling-Bach Collecting Labeling Machine

EGMFRC-66 Paper Egg Carton Automatic Feeding-Robot Labeling-Bach Collecting Labeling Machine

For Recycled Paper Pulp Series with CE Certificate is Available

Product ID: Paper Pulp Egg Carton Labeling EGMFRC-66 Series (165) (4-Stack-Hopper-Magazine Automatic Feeding-Labeling-Collecting)

■ MODEL: EGMFRC-66 (for 10/12-cell)
• Automatic Output Conveyor Discharge Type
• 4 Stack-Hopper Magazine Automatic Feeding System
• X-Table Robot Automatic Labeling System

Designed / Operation Speed:
   Approx.  28~35 / 32~35 pcs/min

• Special for Recycled Paper Pulp Egg Carton/Box/Tray
• General Water Base Cold Glue Labeling
• Automatic Feeding-Roller Gluing-Labeling-Collecting


 Function & Advantages:

- Egg Cartons/Boxes/Trays Feeding:
   Vacuum Force Taking-up with Peel-off Separating System
- Stacked Egg Trays Feeding Automatically
- Integrated Control X-Table Robot System
- Equipped with 2 Sets Hopper Fixed Type Automatic Feeding System
- Egg Cartons/Boxes/Trays Automatic Transportation System
- Inter-Changeable Top-Chain Conveyor with Mold-Sets
- Standard Model with Fixed Type Mold-Sets
- Optional Equipped with Inter-Changeable Mold-Sets
- Products Position-Setting Automatically
- Automatic Label Taking and Transporting System
- Precisely Automatic Gluing and Labeling
- Integrated Control with Output Conveyor System
- Labeled Cartons Automatic Change to Vertical Standing Direction
- Horizontal Stacking Output Discharge Automatically
- Labeled Products Automatic Horizontal Output Continuously

 Collecting Type to be Selected:
a). Continuous Output Discharge for Collecting.
  b). Equivalent Quantity Output Discharge for Batch Collecting.


Control System:
- Programmable Logic Control System: Japan "Mitsubishi" PLC
- Labeling System: Japan "Yaskawa" Servo Motor
- HMI: Interfaced Control Touch Screen Monitor

Hot-Melt Glue Labeling System to be optional

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
