EGDCLP-68/EGSCLP-68 Paper Pulp Egg Carton Multi-Application Labeling Machine

EGDCLP-68/EGSCLP-68 Paper Pulp Egg Carton Multi-Application Labeling Machine

Multi-Application Egg Carton Labeling Series

Product ID: Paper Pulp Egg Carton Labeling EGDCLP-68/EGSCLP-68 Series (162)

■ Multi-Application Paper Pulp Egg Carton Labeling Machine
- Multi-Axis X-Table Robot Single/Twin-Labeling System

■ Model:
• EGSCLP-68 Single-Labeling System
• EGDCLP-68 Twin-Labeling System

■ Application:

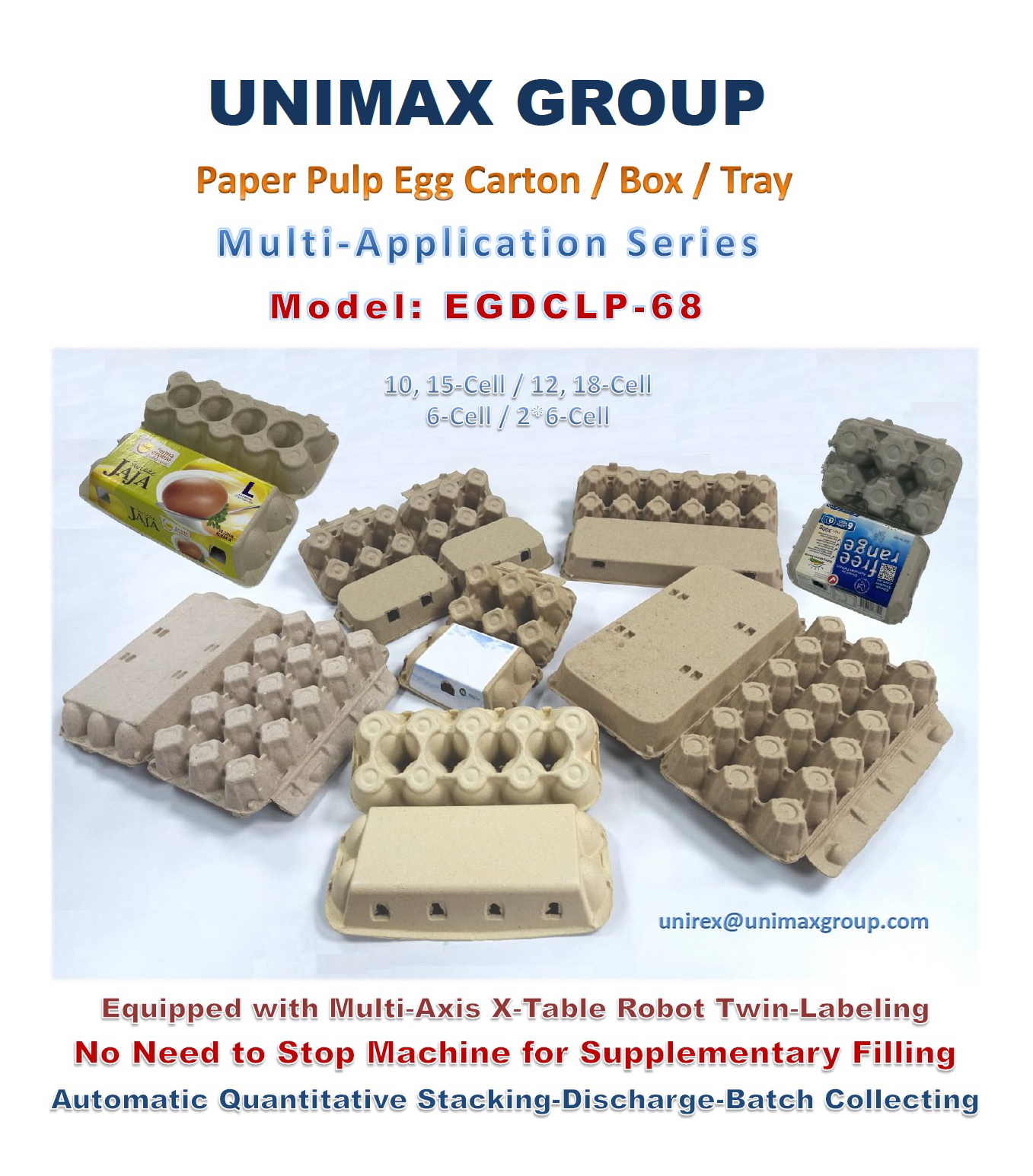

- For 10/15-cell or 12/18-cell egg carton
- Optional system for 6-cell or 2*6-cell egg carton
Precut Paper Label
- Wet Adhesive Water Base Cold Glue Type

 Designed /Operation Speed:
• EGSCLP-68: Approx. 27 ~ 32 / 25 ~ 30 Pieces/Min.
• EGDCLP-68: Approx. 60 ~ 70 / 60 ~ 65 Pieces/Min.

 Egg Cartons Supplemental Filling in Stack-Hopper
- No Need to Stop The Machine.


 Function & Specification:
- Equipped with Automatic Feeding-Labeling-Collecting System
- PLC Servo Control Multi-Axis X-Table Type Robot Labeling System
- Batched Quantity Labeled Carton Automatic Stacking
- Equivalent Quantity Labeled Carton Bundle Collecting System
- Egg Carton Specification Fixed or Adjustable Type to be Option
- Interchangeable Stack-Hopper System
- Series-I for 10-cell or 15-cell Egg Carton
- Series-II for 12-cell or 18-cell Egg Carton
- Optional for 6-cell or 2*6-cell Egg Carton
- Multi-Application Type Depend on Egg Carton Specification.
- Label Size: Max. 250 (W) x 180 MM (L = Label gluing direction)


■ Features:
1). Using general water base cold glue easy for operation and
     maintenance as well as easy getting glue suppliers.
2). Integrated control egg carton labeling and feeding-collecting.
3). Twin-Stack-Hopper magazine easy for preparing egg cartons
     - Top-to-Bottom for labeling operation.
4). Precise labeling system by X-Table Robot
5). Main Labeling Machine:
• EGSCLP-68: 68-series * 1
• EGDCLP-68: 68-series * 2
6). Egg cartons separated and taking from stack-hopper magazine
     on to conveyor automatically.
7). Egg cartons put onto conveyor & set position automatically.
8). Twin-pressing system for 3-face (top-front-hinge sides) labeling.
9). Servo control transporting conveyor system.
10). Labeled product lift-stacking into collecting stack-hopper
     - Bottom-to-Top automatically.

Collecting of egg cartons no need to stop the machine.

Control System:
• Gluing System: Servo Control Roller Gluing
• Label Stack-Hopper: Servo Control
• Labeling: X-Table Robot & Servo Control
• Japan ‘MITSUBISHI’ PLC programmable logic control system
• Japan ‘YASKAWA’ Servo Motor system.
• Japan "PROFACE" Touch Screen Monitor control system

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

See more complete detail

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
