New Product Announce!


Auto-Feeding- Continuous Restacking Discharge Thermoforming Products Automatic Labeling Machine

Auto-Feeding- Continuous Restacking Discharge Thermoforming Products Automatic Labeling Machine

Thermoforming Products Labeling Machine

Product ID: Thermoforming Products Labeling 311/321/322-VAC Series (142)

• Off-Line Thermo forming Products Labeling Type

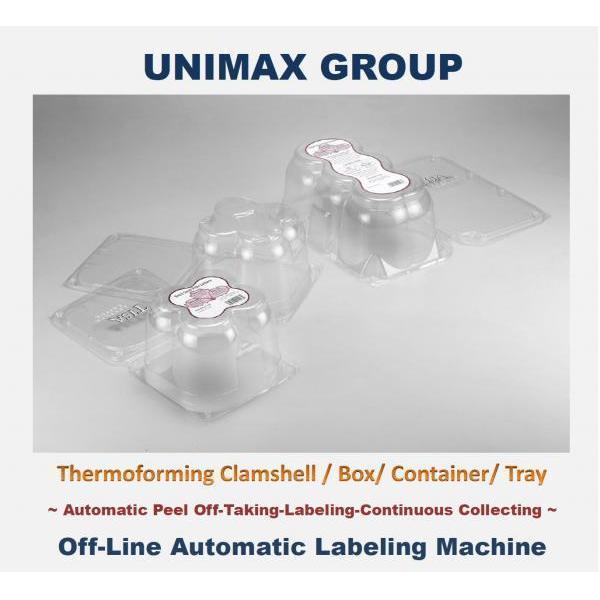

• For Formed and Cut-Trimmed Clamshell / Box/ Tray Labeling
• For Single-Labeling or Twin-Labeling

Automatic Feeding & Restacking Output Delivery Continuously
Single-Labeling System for 1-Lane, 1-Label
321-VAC-S2: Double-Labeling System for 1-Lane, 2-Label
322-VAC-S3: Double-Labeling System for 2-Lane,2-Label

* High Precision Servo Motor Control Labeling System.


♦ Operation Speed:
• 311-VAC-S1 / 321-VAC-S2 :
  Approx. 40~50 pcs/min depend on size & shape
• 322-VAC-S3 :
Approx. 80~100 pcs/min depend on size & shape

  Control System:
• PLC Control System: Japan "Mitsubishi" PLC
• HMI:  Inter-faced Colorful Touch Screen Monitor
• Computerized Labeling System
• No Scratch on Label & Substances
• 311-VAC-S1 / 321-VAC-S2 conveyor
- Equipped with Japan Brand "Orient" AC Motor Driving System
• 322-VAC-S3 Conveyor
- Equipped with Japan "YASKAWA" Servo Motor Driving System
• Italy Warm Gear Speed Reducer
• Japan "YASKAWA" Servo Motor Labeling System
• Label Detecting Sensor: "SICK" or "KEYENCE" Brand


• Non-Stop Plastic Stacked Products Supplementary Re-Filling
• Automatic Supplementary Feeding without Stopping the Machine
• Automatic Product Take-off:
- Continuous Discharge without Stopping Machine
• Automatic Labeled Products Output Delivery Continuously:
Continuous Re-Stacking without Stopping Machine
• Automatic Quantity Setting & Counting
• Labeling Accuracy: ± 2 mm
• By Pressure Sensitive Self-Adhesive Label Labeling
• Nontransparent Type of Label

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
