Automatic Tissue Paper Re-Winding Machine for Toilet / Kitchen Towel Rolls

Product ID: Re-winding Sector UC-1121 Series (13)
  • Automatic Re-winding Production Line
    - For Toilet Tissue/Kitchen Towel Rolls
    • Optional
    - For Maxi/Wiping/Catering/Industrial Rolls.

    Type A:
    - Automatic start-stop-start re-winding type.
    Type B:
    - Fully automatic non-stop re-winding type.



• Automatic re-winding machine
- For toilet rolls/kitchen towel rolls
- Parent roll size:
  Up to (W)2,900 mm in width, 1,500mm ∮ diameter
- Distance of perforation: 100 ~ 125 mm or other spec.

• Automatic accumulator + automatic log cutter
- For toilet/kitchen towel rolls
- Elevating tray type accumulator
- Elevating tray type: 30 ~ 250 trays of log
- Connected with integrated control log cutting machine
- Log cutter
- Mechanical speed: 0 ~ 150 cuts/min.
- Number of rolls: 2 rolls/cut


■ Type A: Automatic start-stop-start re-winding type
◊ Programmable logic control (PLC)
◊ Inter-faced touch screen monitor control (HMI)
◊ Designed speed: Approx. 200~250 M/ Min.
 - Depends on character of tissue material
◊ Oeration speed: Approx. 100~150/200 M/Min
 - Depends on character of tissue material
◊ Automatic paper core feeding
◊ Automatic perforating & cutting
◊ Automatic tail gluing-bonding
◊ Automatic tail cutting

■ Type B: Fully automatic non-stop re-winding type
◊ Programmable logic control (PLC)
◊ Inter-faced touch screen monitor control (HMI)
◊ Designed / operation speed: 300 / 200~250 M/Min
◊ Servo control system
◊ Included:
 - Non-stop re-winding system
 - Load table + tail glue system
 - Auto core loading system
 - Auto core pick up system
 - Non-stop auto tail cutting-bonding system

• Optional-I
   Multi-purpose types are available for:
   Maxi/Catering/Wiping/Metical Sheet/Industrial Jumbo Rolls

• Optional-II
 - Full embossing system
 - Duel/Nest embossing system
 - DESL embossing system
 - Point-to-point embossing system
 - Edge embossing/bonding system
 - Gluing-Lamination system
 - Printing system
 - Edge embossing/bonding system

• Optional-III
 - Build-in paper core cutting system
 - Automatic paper core feeding system

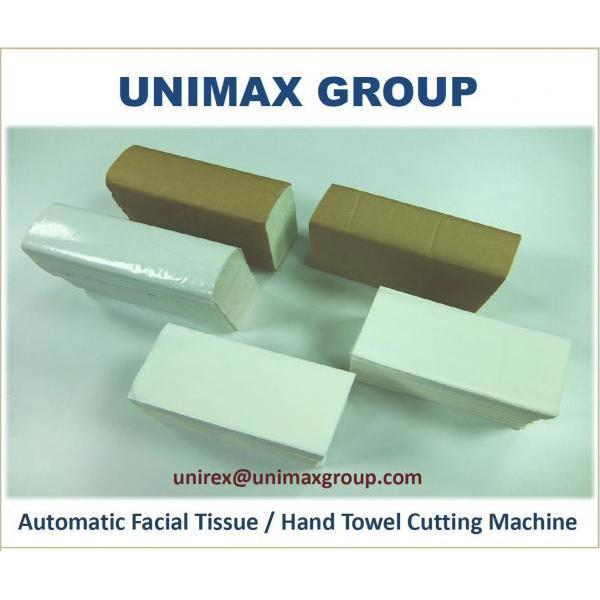

* Products of sample in photograph are for reference only

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
