EGVAC-68 Multi-Application Paper Pulp Egg Carton Automatic Labeling Machine (Multi-Axis Servo Control X-Table Robot Labeling System)

EGVAC-68 Multi-Application Paper Pulp Egg Carton Automatic Labeling Machine (Multi-Axis Servo Control X-Table Robot Labeling System)

For Recycled Paper Pulp Series with CE Certificate is Available

Product ID: Paper Pulp Egg Carton Labeling EGVAC-68 Series (167)

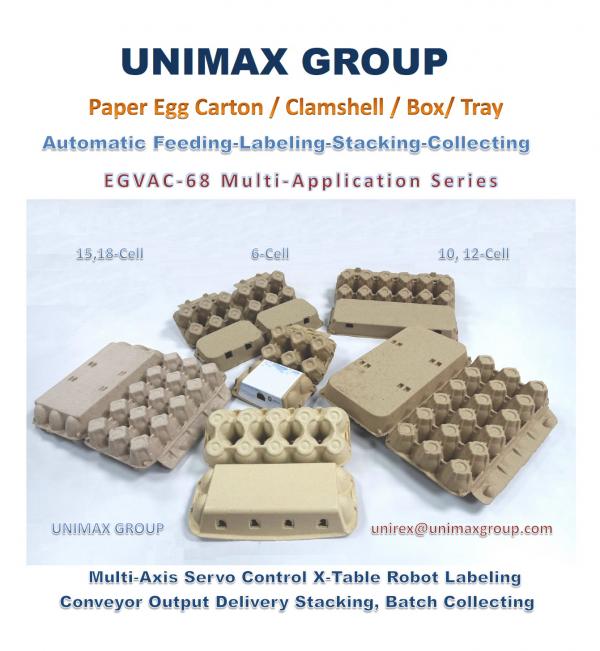

■ MODEL: EGVAC-68 (for 10, 12, 15, 18, 6-Cell)
♦ Multi-Application Type
♦ Multi-Axis Servo Control Robot Labeling System

• Designed / Operation Speed:
   Approx.  22~35 / 22~38 pcs/min

• Special for Recycled Paper Pulp Formed Egg Carton / Box / Tray
• General Water Base Cold Glue Labeling
• Optional Hot-Melt Glue Labeling
• Servo Conveyor Transporting Conveyor
• Automatic Feeding-Gluing-Labeling-Collecting
• Equipped with Enhanced Labeling System
• Automatic Output Conveyor Discharge Type


* Integrated Control X-Table Type of Robot System
* Adjustable Type Automatic Feeding System
* Servo Motor Controlled Labeling & Transporting System

Function & Advantages:
- Egg Cartons/Boxes/Trays Feeding:
  By Vacuum Force Taking-up with Automatic Separating System
- Stacked Egg Trays Feeding Automatically
- Egg Cartons/Boxes/Trays Automatic Transportation System
- Products Position-Setting Automatically
- Automatic Label Taking and Transporting System
- Precisely Automatic Gluing and Labeling
- Integrated Servo Control with Output Conveyor System
- Labeled Egg Cartons / Boxes / Trays Discharge:
   Automatic Change to Vertical Standing Direction
- Horizontal Stacking Output Discharge Automatically
- Labeled Products Automatic Horizontal Output Continuously

 Collecting Type to be Select:
a). Continuous output discharge for collecting.
  b). Batch output discharge for collecting.


Control System:
- Programmable Logic Control System: Japan "Mitsubishi" PLC
- Labeling System: Japan "YASKAWA" Servo Motor
- HMI: Interfaced Control Touch Screen Monitor

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
