UAC-820/830-PP/PPO Series Pull-Push Cap Assembly Machine

UAC-820/830-PP/PPO Series Pull-Push Cap Assembly Machine

Pull-Push Cap Assembly Machine, Closure Assembly Machine

Product ID: Assembly Machine UAC-820-PP/PPO, UAC-830-PP/PPO Series (115)

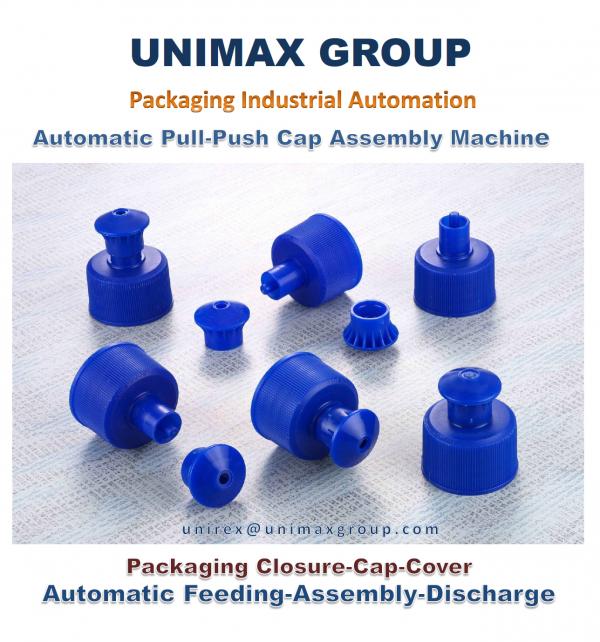

• Pull-Push Cap with or without Outside Cap
• For Drinking Water, Shampoo, Liquid Detergent Bottle Cap, etc.

■ Model:
• UAC-821-PP series without outside cap (1-Mold, 1-Cavity)
• UAC-831-PPO series with outside cap (1-Mold, 1-Cavity)
• UAC-822-PP series without outside cap (1-Mold, 2-Cavity)
• UAC-832-PPO series with outside cap (1-Mold, 2-Cavity)


Parts Arranging And Feeding For Nipple Caps/Nozzles
- Un-scrambler
- Parts delivery
- Parts arranging system
- Parts track guiding system

♦ Parts arranging and feeding for main caps
- Un-scrambler
- Parts delivery
- Parts arranging system
- Parts track guiding system

♦ Assembly system
- Integrated programmable control(PLC) system
- Sensor control system
- Parts positioning device
- Caps take-up system
- Indexing disc, two-layer type
- Multi-station system
- Parts assembly system
- Products discharging system
- 1-Mold, 1-Cavity : Approx. 35 pieces/min.
- 1-Mold, 2-Cavity: Approx. 60 pieces/min.

♦ Optional
- Caps automatic feeding storage system
- Assembly sequence individual station compensating control system


■ Features:
  For Pull-Push Type Of Drinking Water Bottle Cap Assembly

• Cap
-Cap with thread or pressure capping types
- Nipple cap as pull-push nozzle types
• Separate parts automatic arranging and feeding
- Un-scrambler system
• No cap, no assembly
• Rotary type of multi-station system
• Cap parts position-setting system
• Automatic parts of cap/nozzle assembly
• Programmable logic control(PLC) system
• Counter system
• Automatic assembly caps discharge system
• Optional improper assembly detecting system


Order Information:
  • Minimum Order: Negotiable
  • Branded Product
