New Product Announce!

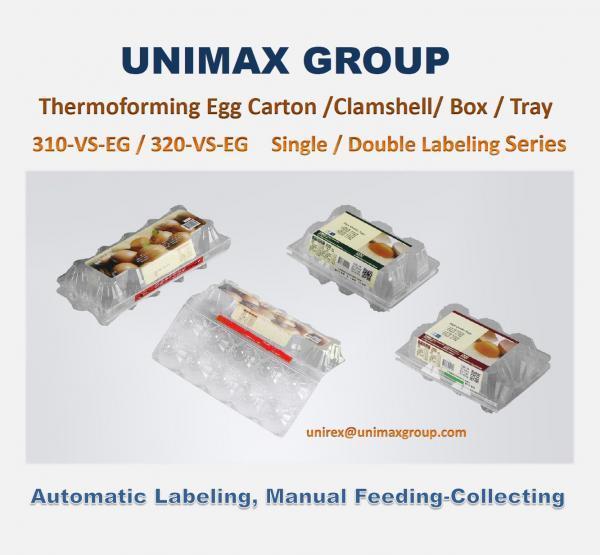

310-VS-EG-S1/320-VS-EG-S2 Automatic Thermoforming Egg Carton / Box/ Tray Lid/Clamshell Labeling Machine

310-VS-EG-S1/320-VS-EG-S2 Automatic Thermoforming Egg Carton / Box/ Tray Lid/Clamshell Labeling Machine

Plastic Thermoforming Egg Carton/Lid Labeling Machine

Product ID: Plastic Thermoforming Egg Carton/Box/Clamshell Labeling 310-VS-EG-S1/ 320-VS-EG-S2 Series (157)

Model: 310-VS-EG-S1/320-VS-EG-S2
• For Plastic Vacuum / Thermoforming Products Labeling
• With Special Designed Conveyor System for:
   Egg Carton/Box/Tray Lid/Clamshell Labeling
 Self-Adhesive Label Top Labeling:
• 310-VS-EG-S1 Automatic Single-Labeling System
• 320-VS-EG-S2 Automatic Twin-Labeling System
* High Precision Servo Motor Control  Labeling System.
* Manual Feeding-Collecting with Automatic Labeling System.


Product Size Example (Opened):
   Max. 330 (L) x 350 (W) mm (Formed & Trimmed)

■ Machine Speed:
• Conveyor Feeding Speed: Approx. 30 m/min
• Operation Labeling Speed: Approx. 6~18 m/min

■ Features & Specification:
• For Products Top Labeling by Self-Adhesive Label
• Nontransparent Type of Label
• No Scratches on Labels & Substances
• Labeling Accuracy: ± 2 mm
• Labeling Position / Height / Angle Adjustable System
• Easy to Change Labeling and Conveyor Speed
• Easy to Adjust and Counting Synchronously
• Easy to Re-Load Label Roll while Running Out the Labels
• Short Time Needed for Replacing Label Roll
• Save Time to Stop The Machine

- Transparent Label Sensor System
- Non-Air Bubble Labeling Mechanism
- For More Rigid Substances and Transparent Label


Control System:
• PLC Control System: Japan "Mitsubishi" PLC
• HMI: Inter-faced Colorful Touch Screen Monitor
• Computerized Labeling Mechanism
• Conveyor with Japan Orient AC Motor Driving System
• With Italy Worm Gear Speed Reducer
• With Japan "YASKAWA" Servo Motor Labeling System
• Label Detecting Sensor: "Sick" Brand

* The brand names of products shown in the catalogue are
   the reference application to our manufacturing equipment

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
