High Speed Plastic Thermoforming Clamshell/Box/Container Labeling Machine

High Speed Plastic Thermoforming Clamshell/Box/Container Labeling Machine

Thermoforming Product High Speed Labeling Machine

Product ID: Plastic Thermoforming Products Labeling 342-HVC Series (144)

  High Speed  Off-Line Self-Adhesive Labeling Machine for:

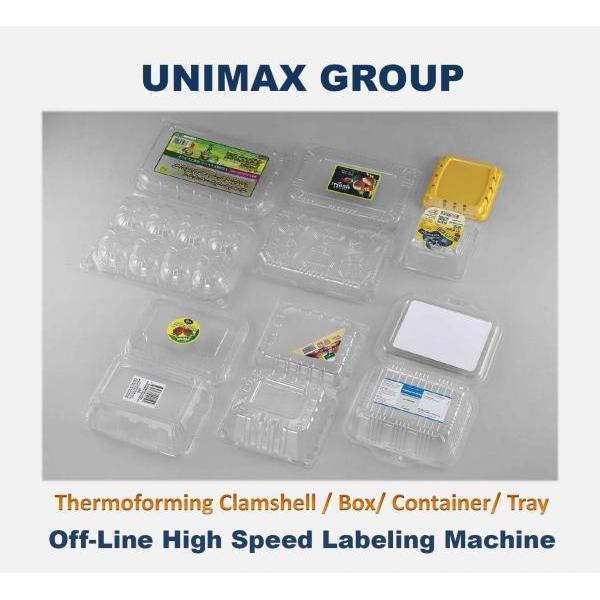

     Plastic Vacuum/Thermoformed Clamshell/Box/Tray/Lid

• Off-Line Labeling System
• Labeling Speed: Approx. 200 ~ 220 Pieces/Min
• Servo Motor Control Top Labeling System
• Equipped With Individual Angle Adjustable 4-Labeling-Head
• Automatic 2-Lane Continuously Supplementary Feeding System
• High Speed Taking-Off System by Non-Stop Robot Arm
• No Need to Stop The Machine for Re-Filling
• High Speed Continuously Automatic Collecting System
• Automatic Batched Equivalent Quantities Collecting System


* Label Type: Self-Adhesive Label
* Machine Body & Frame:
    Aluminum Alloy With Anodizing Treatment and Stainless Steel
* Collecting Accumulation & Delivery System
* Chain Type Products Delivery System
* Labeled Products Working Table
* Conveyor: 3,770 MM (L) x 800 MM (W) x 850 MM (H)
* Labeling Height And Forward/Backward Position Adjustable
* Labeling Product Size: Max. 200 (L) x 350 (W) mm
* Label Size: Max. 200 (L) x 120  (H)  mm Included Base Paper
* Label Roll: ∮300 O.D. & ∮76  I.D. mm
* Machine Dimension: 8,450 (L) x 1,200  (W) x 1800  (H) mm
* Compressed Air Needed:
    6 KGS/CM2 With Reserve Tank And Dehumidifier



♦  Control System:

* Japan “MITSUBISHI” PLC Control System
* Conveyor System: Japan “YASKAWA” Servo Motor Control System
* Labeling System: Japan “YASKAWA” Servo Motor Control System
* Interfaced 10” Colorful HMI Touch Screen Monitor
* Label Sensor: “SICK” Optoelectronic Sensor
* Product Detect: Japan “OMRON” photoelectric sensor
 -  Special for transparent product

* For 2-Lane Substances
 - Vacuum/Thermoforming  Clamshell/Container/Box/Tray/Lid
* Stacked Products Nonstop In-Feed Continuously
* Stacked Products Separating & Peeling-Off Automatically
* High Speed Feeding And Collecting
* High Precision Labeling
* Labeled & Re-stacked Products:
 -  Batched Equivalent Quantity Products Intermittent Separating
 -  Continuous Collecting Automatically
* Labeling Accuracy: ± 2.0 MM
    (Depend On The Design Of Vacuum/Thermoforming Product).
* Visible Safety Guard Door With # 440 Aluminum Frame
* Economic and High Efficiency
* Very Less Manpower
* Equipped with Emergency Stop Device

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
