Thermoforming Egg Carton/Box/Clamshell Automatic Hot-Melt Glue Labeling Machine

Thermoforming Egg Carton/Box/Clamshell Automatic Hot-Melt Glue Labeling Machine

Thermoforming Carton/Box/Tray Lid/Clamshell Labeling Machine

Product ID: Plastic Thermoforming Egg Carton/Box/Tray/Clamshell Labeling Machine EGVAC-66V / EGDHLP-68V (156)

■ Model:
 EGVAC-66V / EGDHLP-68V

♦ Die-Cut General Paper Label.
♦ Hot-Melt Glue Roller Gluing-Labeling System

■ Application:
♦ For Plastic Thermoforming Egg Carton/Tray/Clamshell
♦ Automatic Continuous Supplementary Feeding
♦ No Need to Stop the Machine for Supplementary Filling
♦ Automatic Pre-Set Quantitative Separation
♦ Batched Quantity Automatic Bulk Collecting System

♦ Product Example:
- 10-Cell Egg Carton/Box/Tray
- Clamshell
- Food Container
- Fruit Box

Specifications:

■ Specifications:

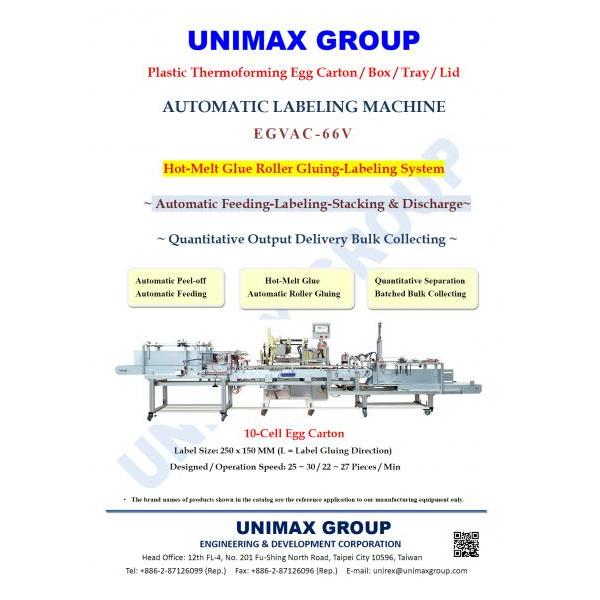

♦ Model: EGVAC-66V:
• Main Label Machine: Hot-melt Gluing Type 66-Series * 1
• Label Size: Max. 250 (W) x 150 MM (L = Label Gluing Direction).
• Designed / Operation Speed: Approx. 25 ~30 / 22 ~ 27 Pieces/Min.

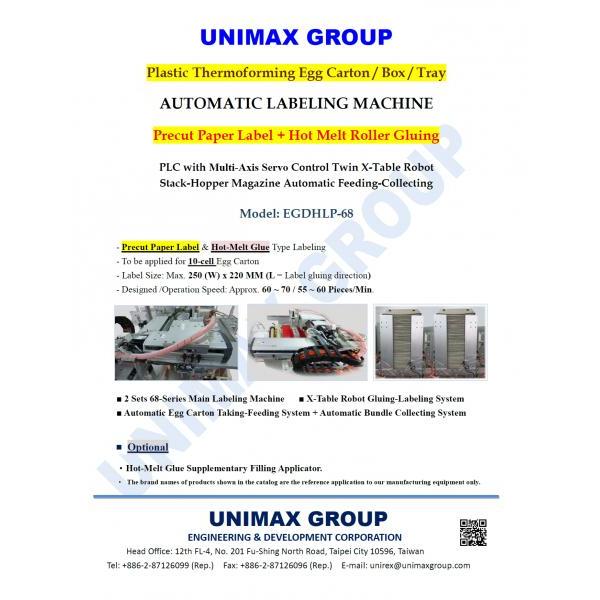

♦ Model: EGDHLP-68V:
• Main Label Machine: Hot-melt Gluing Type 68-Series *2
• Label Size: Max. 250 (W) x 220 MM (L = Label Gluing Direction).
• Designed / Operation Speed: Approx. 60 ~70 / 55 ~ 60 Pieces/Min.

Features:

■ Control System:
• Programmable Logic Control: Japan "Mitsubishi" PLC
• Labeling System: Japan "YASKAWA" Servo Motor System
• HMI: Interfaced Control Touch Screen Monitor

* The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
