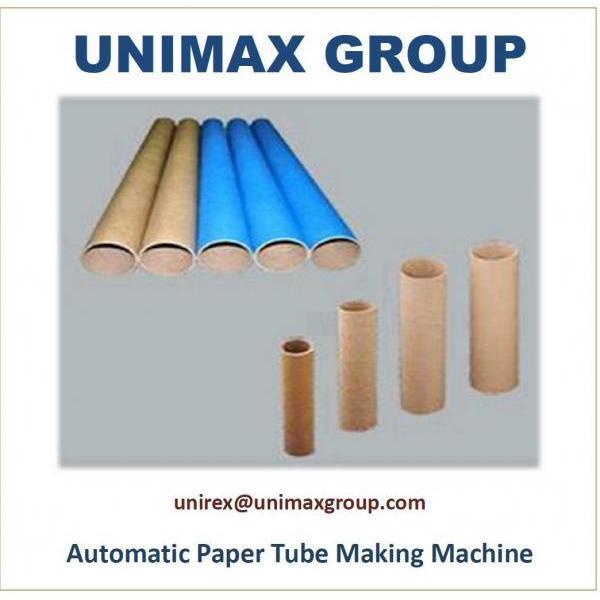

Automatic Paper Tube Making Machine

Automatic Paper Tube Making Machine

Paper Core Making Machine

Product ID: Paper Tube Making Sector UH-S810 Series (41)

■ PLC with Servo Control Paper Core Making Machine
  Model: UH-S8105

• Synchronized Servo Motor Driving
• PLC with HMI Touch Screen Monitor
• Twin-Feeding Knife Core Cutting
• Equipped with Roller Type Gluing System
• L-Type Paper Stand


■ Main Specification:
Core Diameter: ∮30 ∼ 85 mm
Core Thickness: 0.7 ∼ 2.0 mm
Core Length: 2,000~3,000 mm
Rolling Speed: 10, 20, 40, 60, 80 M/Min.
Cutting Speed: Max. 10~80 M/Min
Gluing Unit: Roller Type
Number of Gluing Ply: Allowed 4-ply paper
Paper Core: Max. 2,850 ± 3 mm
Inner Sheet Paper Stand: Upright Type * 1 set
Middle & Outside Sheet Paper Stand: L-Type * 4 sets
Core Cutting: Twin-Blade Type
Length Setting: Detect Sensor
Rolling Shaft: Standard 45∮/50∮ x 1 set
Core Cutting: Servo motor control


 Paper Material:
Parent Roll I. D.: 75~77 mm
Parent Roll O. D.: 1,000~1,100 mm
Paper Width: 75~80 mm
Reference Paper Material: 200 ~ 300 GSM

Order Information:
  • Minimum Order: Negotiable
  • Branded Product
Contact Detail
CEO:Mr. F. Y. Lu
Contact:Sales Department
Head Office:12th FL-4, No. 201, Fu-Shing North Road, Taipei 10596, Taiwan
TEL:886-2-87126099 (Rep.)
FAX:886-2-87126096 (Rep.)
